Project Overview

Tubender is an automated EMT conduit bender that advances, rotates, and bends up to 10 ft of conduit for industrial use. I designed a C++ PID controller for the actuator and created KiCad schematics to connect motors and sensors to the ESP32.

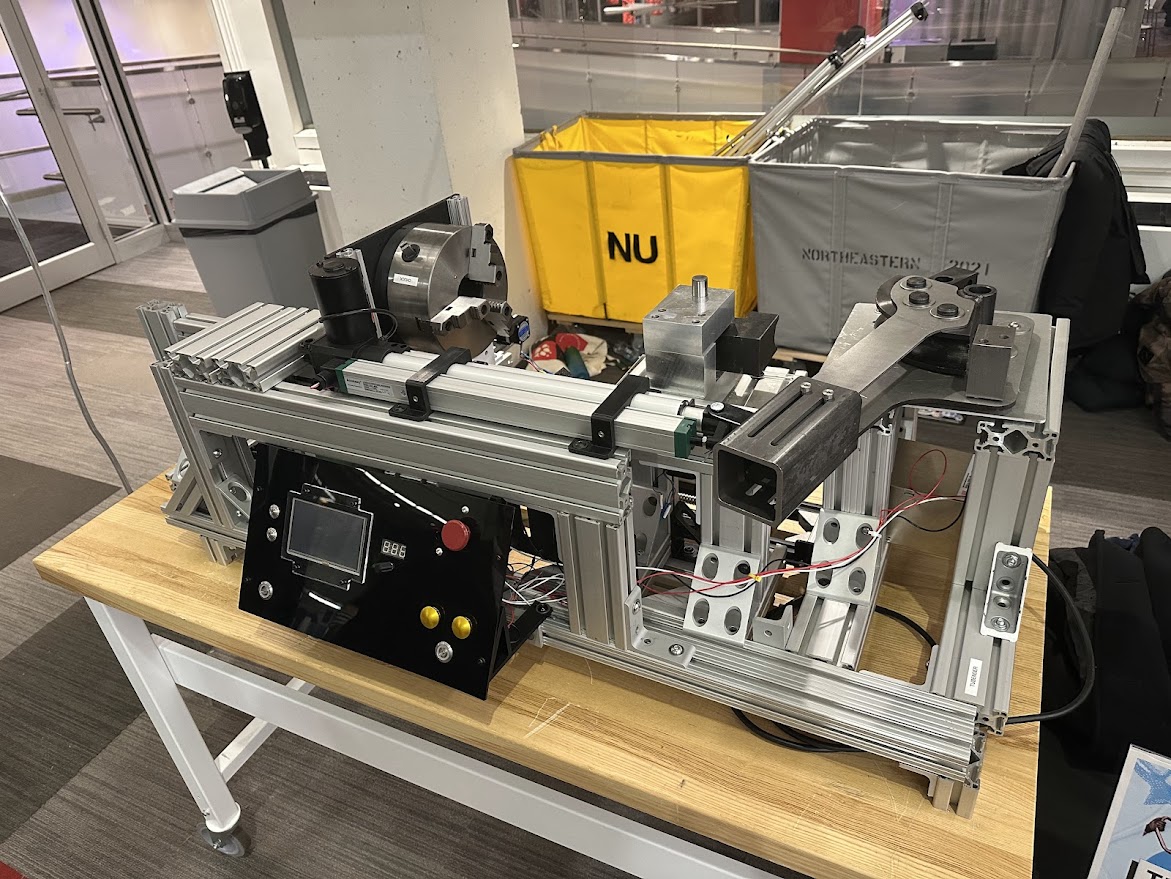

Tubender prototype

Gallery

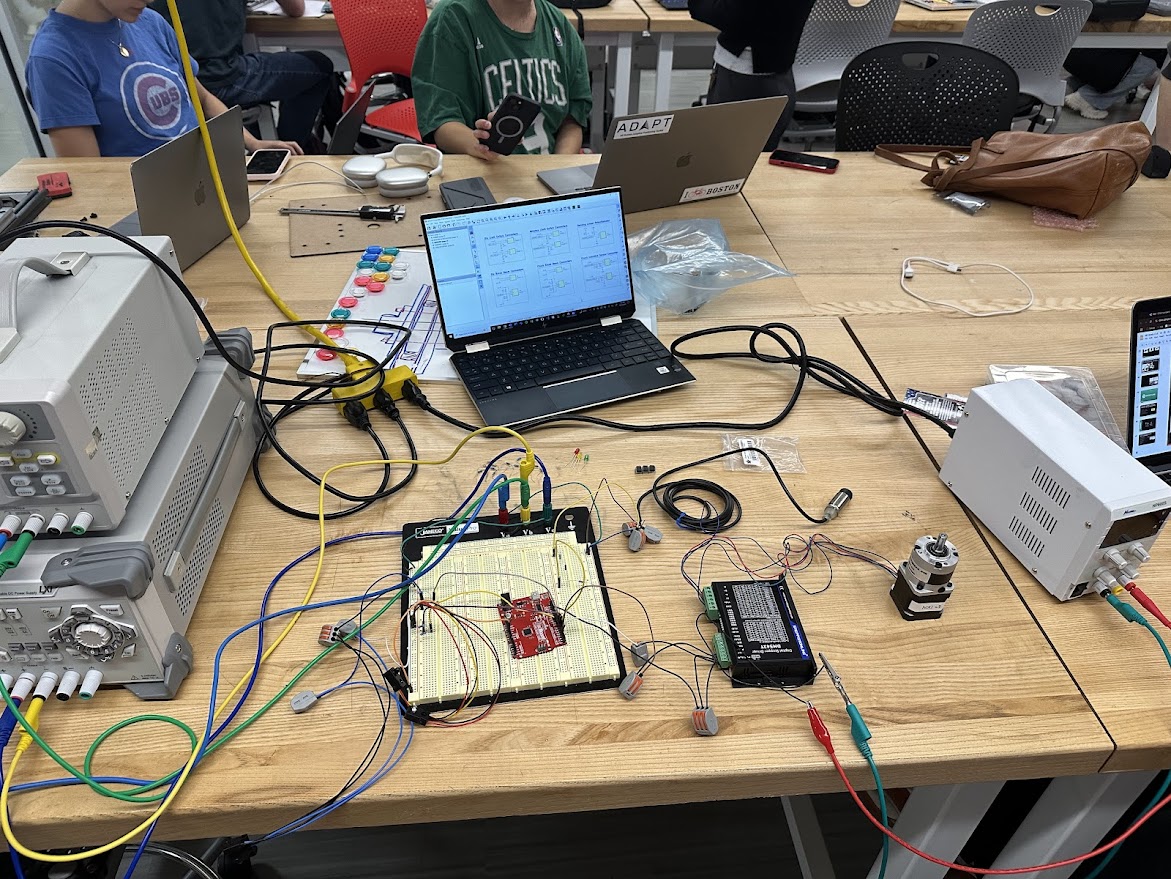

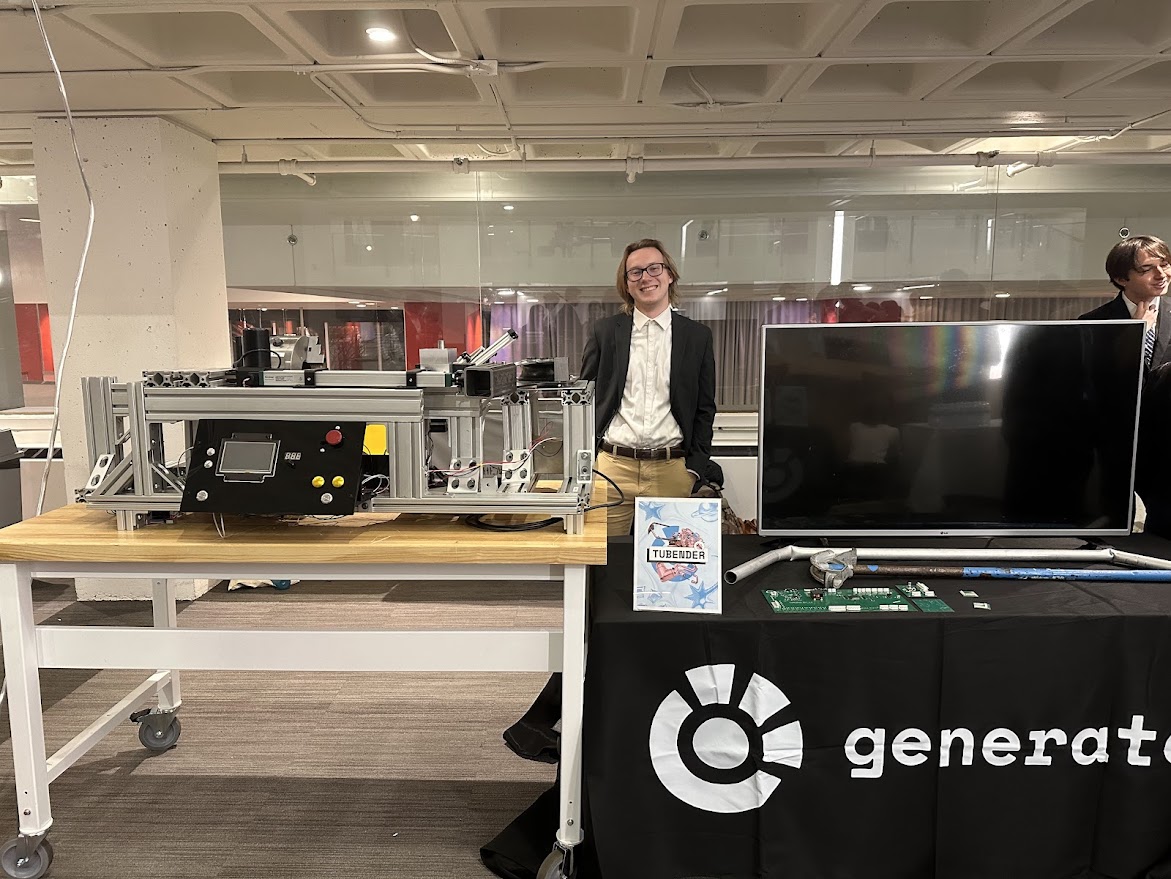

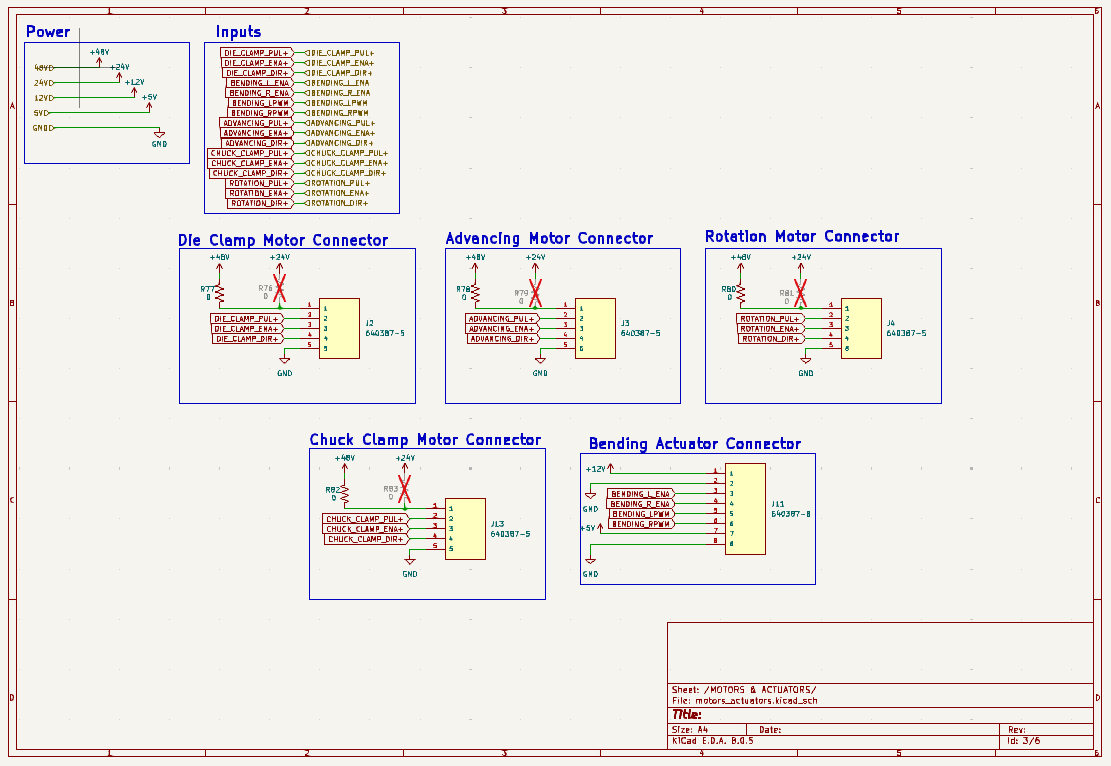

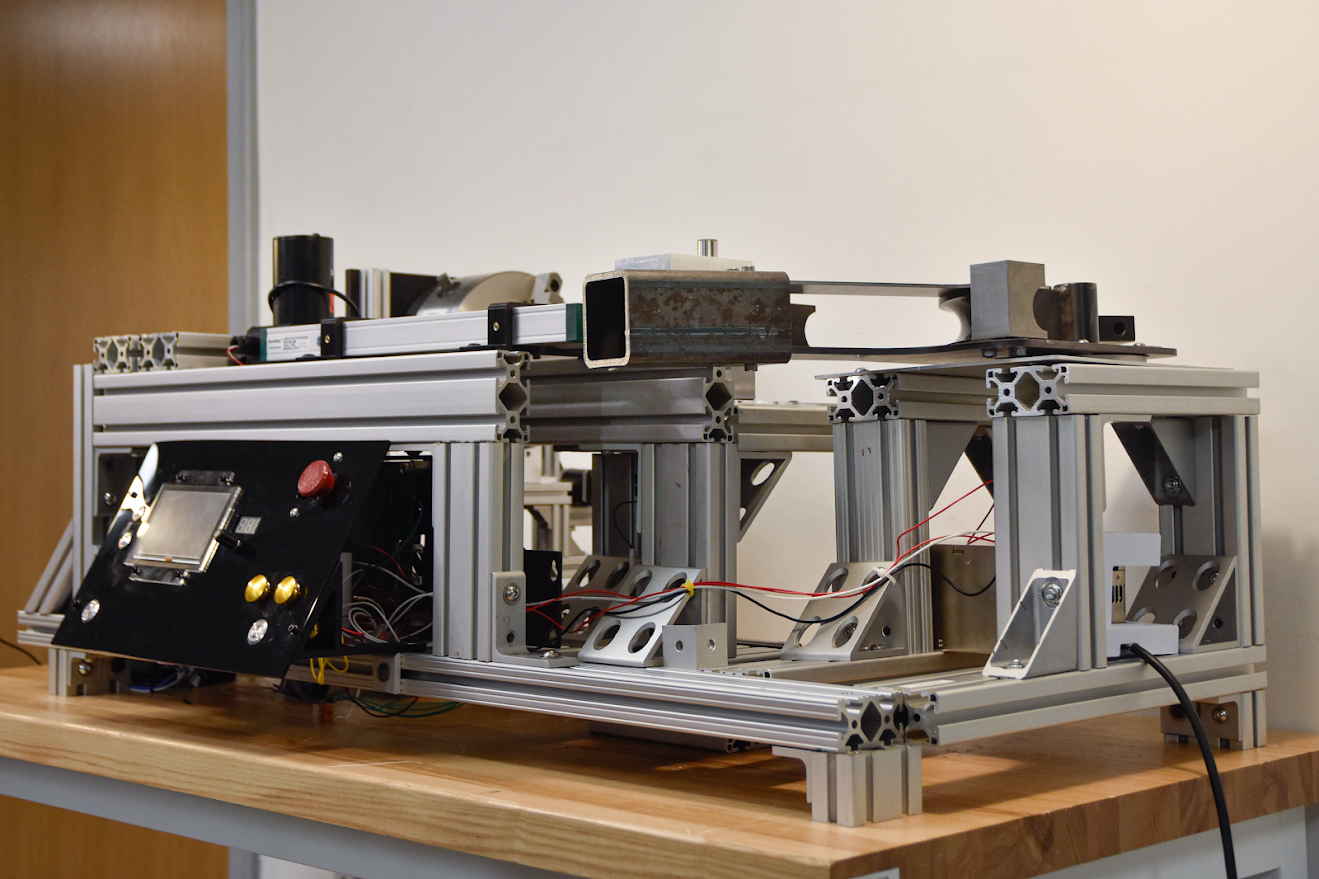

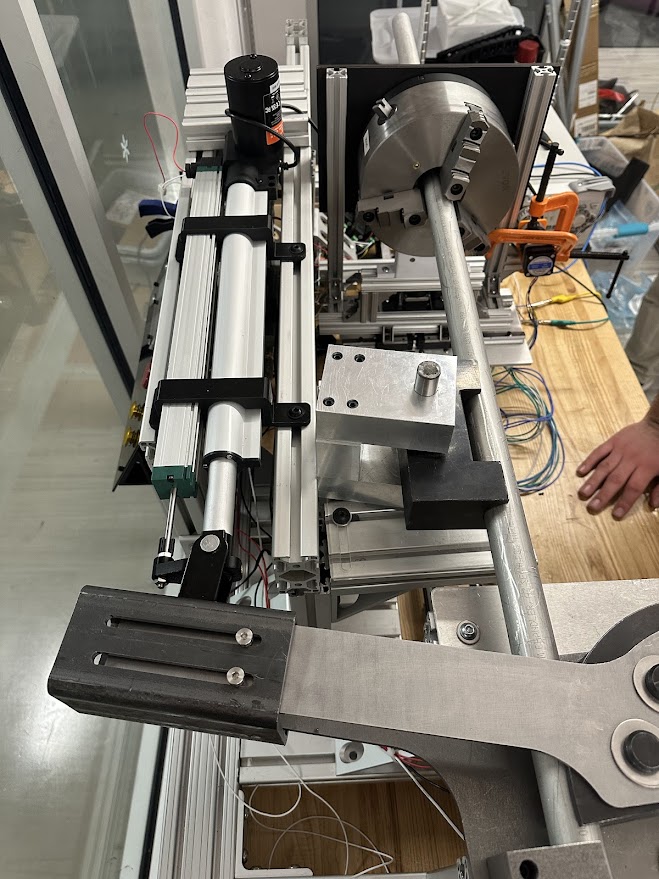

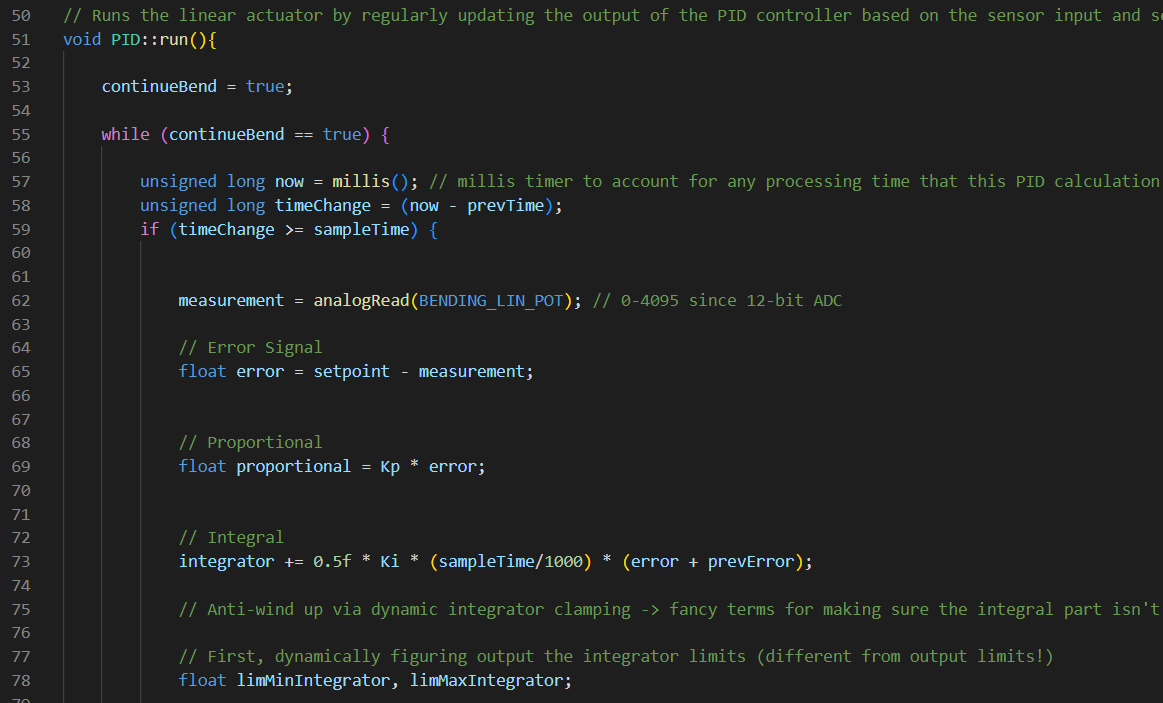

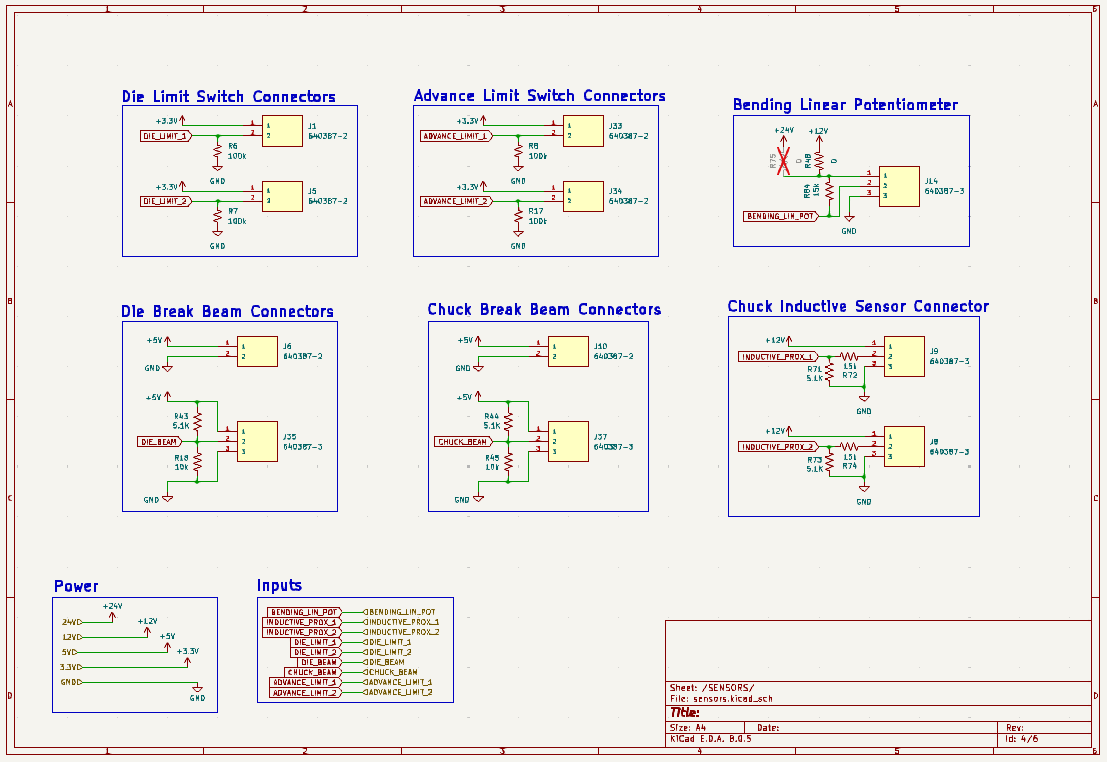

Tubender team photo Tubender assembly Wiring work Tubender front view Sensor schematics Tubender top view Tubender back view PID code Tubender side view Actuator schematics
